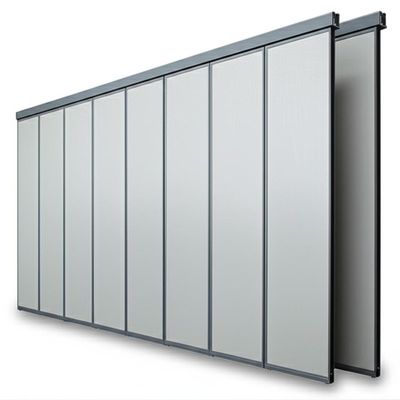

No Floor Track Acoustic Partition Wall with Q235 Steel Frame and Up to 18M Height for Conference Halls

No Floor Track Acoustic Partition Wall with Q235 Steel Frame and Up to 18M Height for Conference Halls

ブランド名: AE
モデル番号: AE100
Moq: 10平方メートル
価格: USD 80-108 Per Square Meter
支払条件: L/C、D/A、D/P、T/T、Western Union、MoneyGram
供給能力: 月額1000平方メートル
詳細情報
起源の場所:
中国広州
証明:
ISO9001 SGS
製品名:
音響隔壁
応用:
会議室の隔壁
仕上げオプション:
顧客から供給された資料
身長:
18Mまで
デザイン:
OEM&ODM
健全な断熱:
最大56db
パッケージの詳細:
泡の層と合板ケースまたはスチールパレット付きの硬い段ボール
ハイライト:

No Floor Track Acoustic Partition Wall

,

Q235 Steel Frame Partition Wall

,

18M Height Soundproof Partition Wall

製品説明
Sound Proof Insulation Acoustic Partition Wall Operable For Conference Hall
Our high-performance acoustic partition walls provide superior sound insulation for conference halls and professional spaces, combining functionality with aesthetic flexibility.
Key Features
  • No Floor Track: Ceiling-mounted design eliminates tripping hazards and debris accumulation with optional integrated acoustic bottom seal.
  • Unlimited Customization: Choose from vinyl, fabric, carpet, veneer, high-pressure laminates, frescoes, or custom surfaces with MDF finish options.
  • Durable Construction: Robust aluminum frame available in heights from 2-15 meters with four thickness options for maximum rigidity.
Roller Features
  • Dupont POM roller
  • 304 stainless steel heavy duty roller with safety device & CNC machining
  • Patented wheel surface design for smooth operation
Panel Features
  • Thickness options: 68mm, 89mm, 105mm
  • Multiple acoustical and decorative finishes available
  • 6061-T6 profile with Q235 steel frame for enhanced durability
  • Top & bottom jack lifting mechanism with 800N power
  • Magnetic seal with 40N/m attraction in concave & convex profile
Specifications
Series Element Thickness (mm) Element Width (mm) Clear Height (mm) Construction
AE65 68 600-1,250 2,000-4,500 Aluminium-steel
AE85 89 600-1,250 2,000-5,500 Aluminium-steel
AE100 105 600-1,250 2,000-18,000 Aluminium-steel
Technology: Weighted sound reduction value (Rw) 52/56 dB (GB/T19889.3-2005)
Connection System: Convex-concave profile with magnetic strip (40 N/m attraction)
* Larger widths available upon request. Final dimensions subject to Design Department approval.
