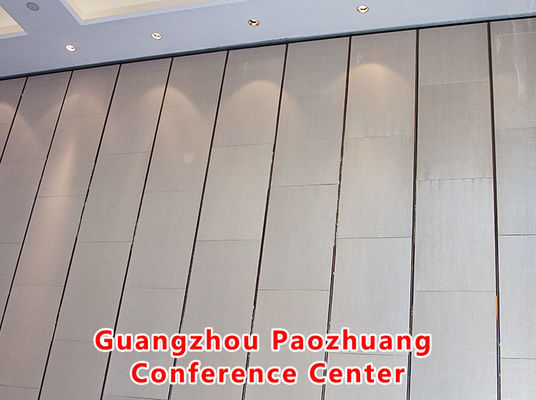

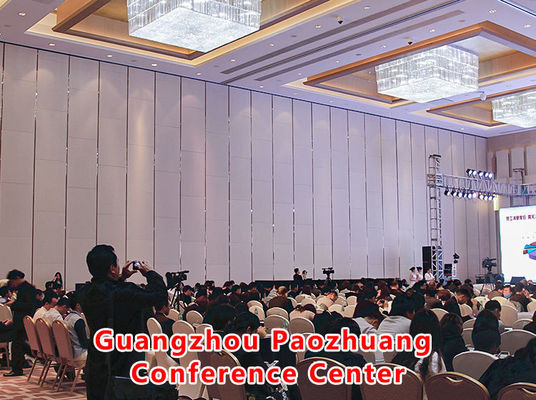

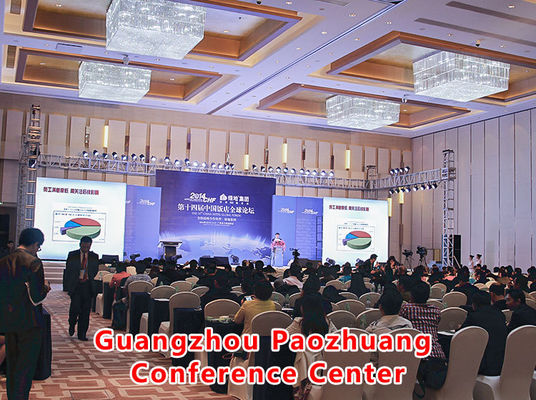

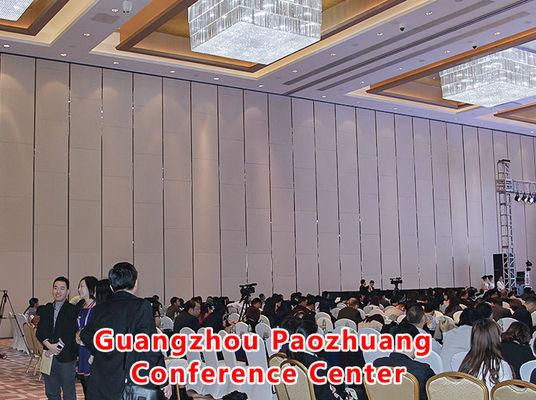

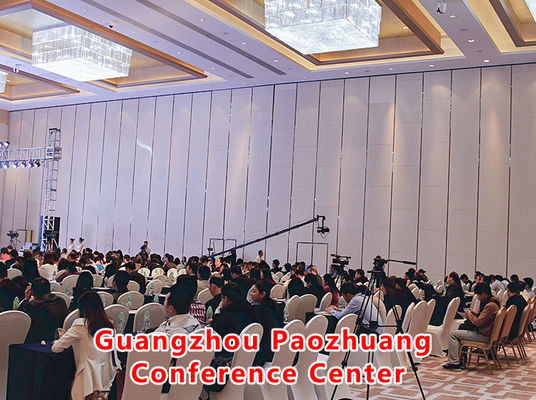

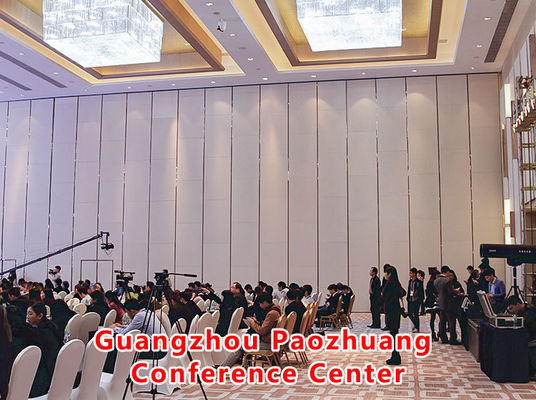

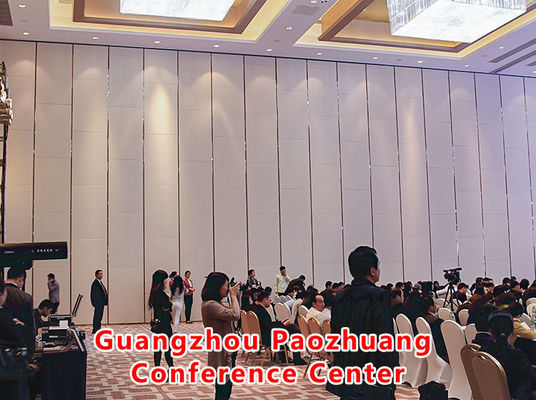

Guangzhou Pazhou Conference Center | Movable Folding Door Partition Wall with Up to 18M Height and 1.2M Width per Panel Featuring 800N Sealing Power

Guangzhou Pazhou Conference Center | Movable Folding Door Partition Wall with Up to 18M Height and 1.2M Width per Panel Featuring 800N Sealing Power

ブランド名: AE
モデル番号: AE100
Moq: 10平方メートル
価格: USD 90-135 Per Square Meter
支払条件: L/C、D/A、D/P、T/T、Western Union、MoneyGram
供給能力: 月額1000平方メートル
詳細情報
起源の場所:
中国広州
証明:
ISO9001 SGS
モデル:
折りたたみドア隔壁
仕上げオプション:
顧客から供給された資料
コンプライアンス:
バンケットホール,会議室
厚さ:
105cm
STCランキング:
42~56dB
寸法:
パーソナライゼーション (高さ:最大18M,パネルあたり幅:最大1.2M)
パッケージの詳細:
泡の層と合板ケースまたはスチールパレット付きの硬い段ボール
ハイライト:

Up to 18M Height Movable Partition Wall

,

Up to 1.2M Width per Panel Folding Door Partition Wall

,

800N Sealing Power Vinyl Partition Wall

製品説明
Movable Folding Door Partition Wall, Vinyl Partition Walls For Meeting Room

Our folding movable partitions provide cost-efficient, robust solutions for versatile space requirements. Also known as sliding walls or mobile walls, these adaptable systems are ideal for offices and commercial buildings, enabling quick reconfiguration to divide or open up spaces as needed.

High-Quality Service Commitment
  • SGS and ILAC-MRA certified products ensuring reliable performance
  • German partition technology for global professional space solutions
  • Extended product lifespan with stable long-term performance
  • Quick follow-up and transparent quoting services
  • On-site inspection services for quality assurance
  • Punctual delivery to maintain project schedules
Unique Roller Options & Features
  • Dupont POM rollers for optimal performance
  • 304 stainless steel construction with heavy-duty capabilities and safety features
  • Patented wheel design for effortless operation
Panel Options & Features
  • 100mm thickness for enhanced stability and sound insulation
  • Diverse range of acoustical and decorative finishes
  • Robust 6061-T6 profile with Q235 steel frame for exceptional durability
  • Top and bottom jack lifting mechanisms with 800N sealing power
  • Magnetic seal with concave/convex profiles (40N/m attraction) for secure closure
Specifications
GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS
Series Element thickness (mm) Element width* (min/max mm) Clear height* (min/max mm) Framed construction Panel fixing Element interconnection
AE65 65 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE85 85 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
Technology Specifications
  • Weighted sound reduction value (Rw dB): 52/56 (GB/T19889.3-2005)
  • Positive and frictional locking with convex-concave profile form
  • Magnetic strip attraction force: 40 N/m
* Larger widths possible on application. Provisional details regarding element heights/widths require confirmation from our Design Department.
