| ブランド名: | AE |
| モデル番号: | AE100 |
| Moq: | 10平方メートル |
| 価格: | USD90-135Per Square Meter |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給能力: | 月額1000平方メートル |
Customize your workspace with our movable partitions. Designed to fit any office environment, these partitions allow you to create meeting rooms, break areas, and more with ease.

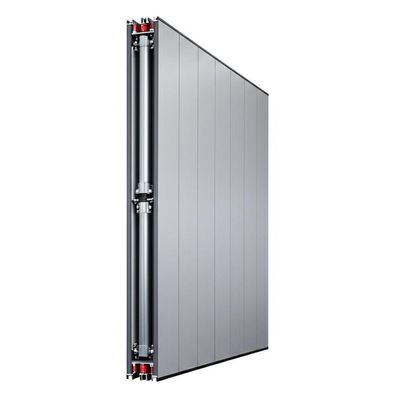

The installed operable partition is designed for easy manual operation, consisting of multiple panels that can be moved without the need for complex machinery. This system is user-friendly and straightforward, allowing individuals to reconfigure spaces with minimal effort. The partition's design focuses on simplicity and practicality, making it accessible for a wide range of users.
| Series | Element thickness (mm) | Element width* (min/max) | Clear height* (min/max) | Framed construction | Panel fixing | Element interconnection |
|---|---|---|---|---|---|---|
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Connection system: Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
