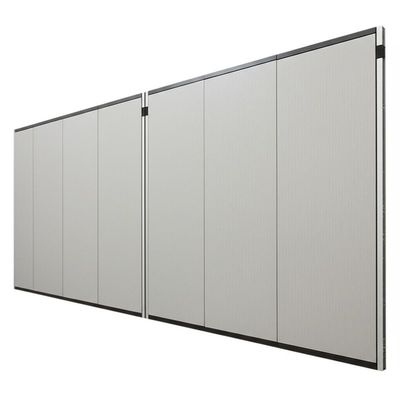

Movable Acoustic Partition Wall with Magnetic Seal Dupont POM Roller and 56dB Sound Insulation

Movable Acoustic Partition Wall with Magnetic Seal Dupont POM Roller and 56dB Sound Insulation

ブランド名: AE
モデル番号: AE85
Moq: 10平方メートル
価格: USD80-108Per Square Meter
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給能力: 月額1000平方メートル
詳細情報
起源の場所:
広東省、中国
証明:
ISO9001 SGS
製品:
音響隔壁
アプリケーション:
レストラン,会議室
パネル材質:
耐火性板
寸法:
カスタマイズ(高さ:最大6m、パネルあたり幅:最大1.2m)
デザイン:
OEMおよびODM
遮音性:
最大56db
パッケージの詳細:
泡の層と合板ケースまたはスチールパレット付きの硬い段ボール
ハイライト:

Magnetic Seal Acoustic Partition Wall

,

Dupont POM Roller Movable Partition Wall

,

56dB Sound Insulation Room Divider Panels

製品説明
Movable Acoustic Partition Wall Room Divider Panels For Events

Transform your space effortlessly with our versatile movable partitions. Perfect for creating private areas in open offices or sectioning off rooms in event venues, these partitions offer both style and functionality.

AE Partition provides innovative solutions for optimal room management to clients across the globe. From the initial concept to final installation, AE Partition specializes in designing and implementing movable partition wall systems that meet the highest standards. In addition to delivering top-notch products, AE Partition offers comprehensive maintenance services to ensure long-lasting functionality and exceptional performance.

Our Strengths
  • Experience in doing project with heavy customers
  • Delivery time control for decent orders
  • Designing team for new products & solutions development
  • The performance of the product is certified by SGS & ILAC-MRA
  • German Partition Technology & Global Professional Space Solutions
  • Increase the Longevity of Your Specialty Products
  • Quick follow up with quote
  • Site inspections
  • Identification of potential safety or function issues
Roller Options & Features
  • Dupont POM roller
  • 304 stainless steel heavy duty roller with safety device & CNC machining
  • Unique and patented wheel surface and shape make the whole movable partition easy to use
Panel Options & Features
  • Thickness: 68mm & 89mm & 105mm
  • Wide variety of acoustical and decorative finishes available
  • 6061-T6 profile and inside Q235 steel frame for superior durability
  • Top & bottom jack lifting mechanism seal are with power of 800N
  • Magnetic seal in concave & convex profile has magnetic attraction of 40N/m
Specifications
Series Element thickness Element width* (min./max.) Clear height* (min./max.) Framed construction Panel fixing Element interconnection/design of the vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
