| ブランド名: | AE |
| モデル番号: | AE85 |
| Moq: | 10平方メートル |
| 価格: | USD80-108Per Square Meter |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給能力: | 月額1000平方メートル |

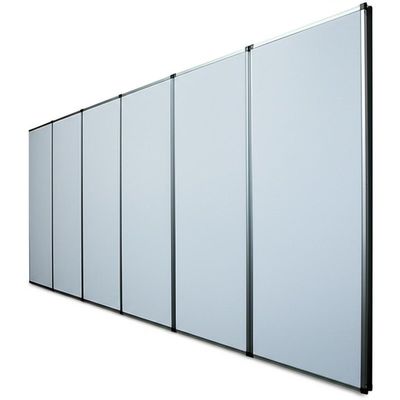

Our functional design movable partitions offer efficient space utilization for offices, retail spaces, and homes, helping you maximize your interior layout.
The operable partition features simple operation requiring no special tools - just an operating handle to engage the top and bottom mechanical seals for effective sound insulation.
| Series | Element thickness (mm) | Element width* (min/max mm) | Clear height* (min/max mm) | Framed construction | Panel fixing | Element interconnection |
|---|---|---|---|---|---|---|
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Element connection: Positive and frictional locking with convex-concave profile form, magnetic strip attraction force of 40 N/m
* Larger widths available upon request. Final dimensions subject to Design Department confirmation.
