High Pressure Laminate Board Movable Partition Wall with STC Rating 42-56dB and Customizable Dimensions

ブランド名:	AE
モデル番号:	AE65
Moq:	10平方メートル
価格:	USD 60-90 Per Square Meter
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給能力:	月額1000平方メートル

詳細情報

製品説明

詳細情報

起源の場所:

広東省、中国

証明:

ISO9001 SGS

モデル:

移動可能な隔壁

ベースボード:

高圧積層板

コンプライアンス:

会議センター,オフィス建物,学校

厚さ:

68cm

STCランキング:

42~56dB

寸法:

パーソナライゼーション (高さ:最大4.5M,パネルあたり幅:最大1.2M)

名前:

移動可能な隔壁

パッケージの詳細:

泡の層と合板ケースまたはスチールパレット付きの硬い段ボール

ハイライト:

STC Rating 42-56dB Movable Partition Wall

High Pressure Laminate Board Movable Partition Wall

Customizable Dimensions Movable Partition Wall

製品説明

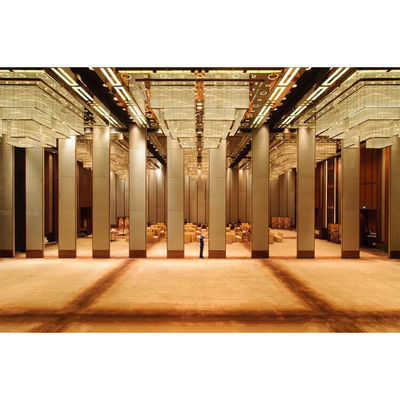

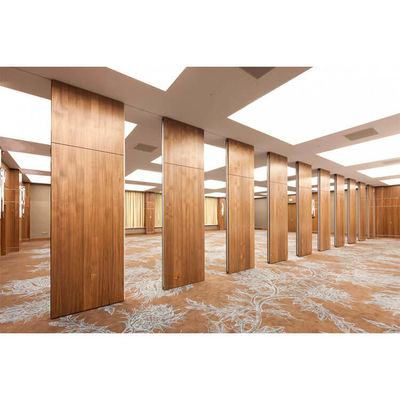

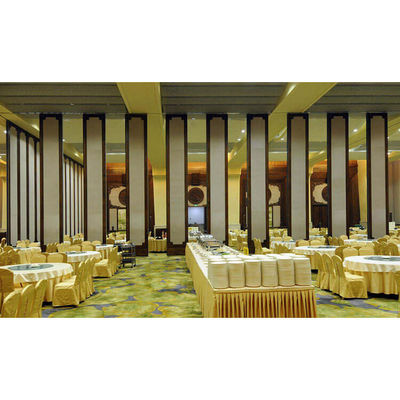

Conference Movable Partition Wall - Retractable Flexible Space Management

AE Operable Partitions consist of multiple panels suspended from overhead tracks, offering a versatile partitioning solution. These partitions are manually operated and do not require any specialized equipment or tools. The only necessary tool is the operating handle, which locks and adjusts the mechanical seals at both the top and bottom, ensuring a secure acoustic seal when the panels are closed.

AE's operable partitions come in a range of configurations, including paired, single (omnidirectional), and continuously articulated (train) options, all designed to meet various acoustic and spatial needs.

Exclusive Design Factory-Direct Pricing for High-Performance Movable Partition Walls

Key Benefits:

Top-Hung System: Eliminates the need for a floor track, enhancing floor aesthetics and functionality.
Effortless Movement: Features retractable top and bottom seals for smooth and easy panel movement.
Elegance Meets Durability: Blends sophisticated design with sturdy construction for a striking and lasting solution.
Customizable Edges: Choose between concealed or exposed panel edge profiles to suit your design preferences.
Flexible Panel Stacking: Offers a range of stacking options to adapt to various space requirements.
Sealed Roller Assemblies: Equipped with sealed-for-life rollers for whisper-quiet operation and reliability.
Versatile Soundproofing: Available in multiple levels of sound reduction to match your acoustic needs.
Diverse Finishes: A wide array of surface finishes to complement any interior design.

Our Offerings:

Comprehensive Professional Design Services: Tailored solutions to meet your specific needs.
Survey and Installation Guidance: Expert assistance for precise and efficient setup.
Premium Materials and Components: Only the highest quality materials are used in our products.
Highly Skilled Team: A fully experienced workforce dedicated to excellence.
Maintenance Contracts: Ongoing support to keep your investment in optimal condition.

Technical Specifications

Series	Element thickness (mm)	Element width* (min/max mm)	Clear height* (min/max mm)	Framed construction	Panel fixing	Element interconnection
AE65	65	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	85	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight
