Acoustic Movable Partition Wall with 800N Sealing Power and 40N/m Magnetic Attraction for Banquet Halls

Acoustic Movable Partition Wall with 800N Sealing Power and 40N/m Magnetic Attraction for Banquet Halls

ブランド名: AE
モデル番号: AE85
Moq: 10平方メートル
価格: USD 80-100 per square meter
支払条件: T/T、L/C、ウェスタンユニオン
供給能力: 月額1000平方メートル
詳細情報
起源の場所:
広東省、中国
証明:
ISO9001 SGS CANS
モデル:
移動可能な隔壁
ベースボード:
MDFボード
コンプライアンス:
会議室,会議室
厚さ:
89cm
STCランキング:
42~56dB
寸法:
カスタマイズ(高さ:最大6m、パネルあたり幅:最大1.2m)
名前:
移動可能な隔壁
パッケージの詳細:
泡の層と合板ケースまたはスチールパレット付きの硬い段ボール
ハイライト:

800N Sealing Power Movable Partition Wall

,

40N/m Magnetic Attraction Movable Partition Wall

,

MDF Board Movable Partition Wall

製品説明

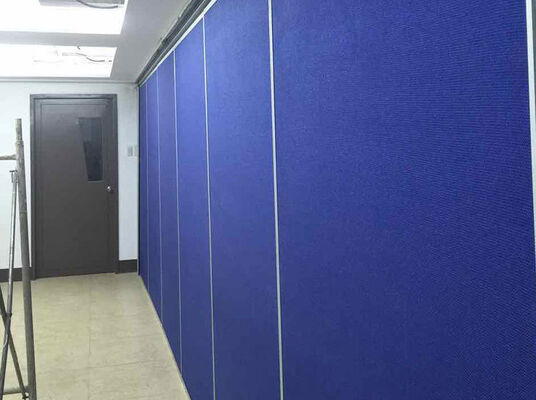

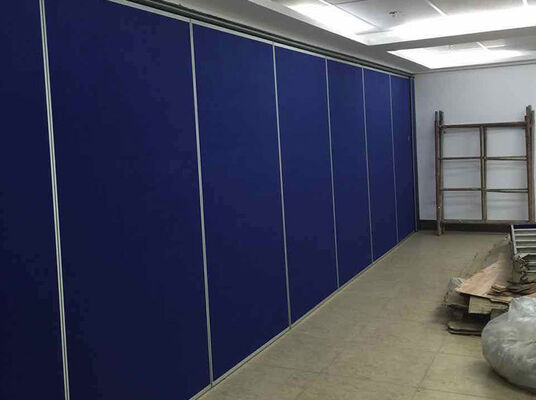

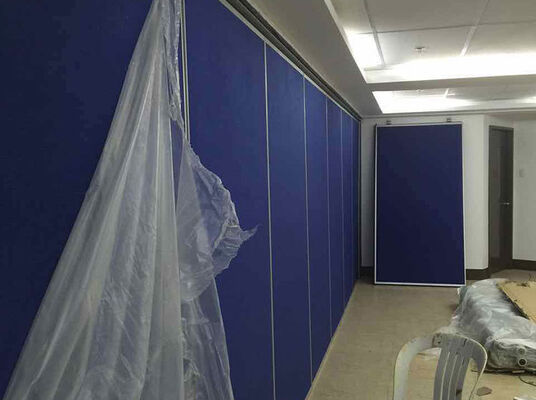

Banquet Hall Acoustic Movable Partition Wall
AE Operable Partitions are a system of multiple panels suspended from tracks, designed for banquet halls and large spaces. These manually operated partitions require no special equipment - just the included operating handle to lock and engage the mechanical seals at top and bottom, ensuring acoustic sealing when closed.
Key Advantages
  • Extensive experience serving major clients worldwide
  • Flexible order delivery time management
  • Dedicated design team for continuous product innovation
  • SGS and ILAC-MRA certified product performance
  • German partition technology integration for professional space solutions
  • Extended service life for all professional products
Roller System Features
  • Premium Dupont POM rollers for smooth operation
  • Heavy-duty 304 stainless steel rollers with safety devices and CNC machining
  • Patented wheel design enhances overall partition system performance
Panel Specifications
  • 89mm thickness for superior stability and sound insulation
  • Multiple acoustical and decorative finish options available
  • 6061-T6 aluminum profile with Q235 steel frame construction
  • 800N jack lifting mechanism with 40N/m magnetic seal for secure closure
Technical Specifications
Series Element Thickness (mm) Element Width (mm) Clear Height (mm) Construction Vertical Profile Design
AE65 68 600-1,250 2,000-4,500 Aluminium-steel Magnetic strip with sealing lips
AE85 89 600-1,250 2,000-5,500 Aluminium-steel Magnetic strip with sealing lips
AE100 105 600-1,250 2,000-18,000 Aluminium-steel Magnetic strip with sealing lips
Sound Reduction: Weighted sound reduction value (Rw) of 52-56 dB (GB/T19889.3-2005)
Sealing Technology: Convex-concave profile with 40 N/m magnetic attraction force
