| ブランド名: | AE |
| モデル番号: | パノラマシステム EGG-100C |
| Moq: | 10平方メートル |
| 価格: | USD112-145Per Square Meter |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給能力: | 月額1000平方メートル |
Our Single Glazed Frame Office Glass Partition Wall System offers a sleek and space-efficient solution for modern office environments. When stacked, the elements compactly arrange into a minimal footprint, making them ideal for tight spaces. The lightweight nature of these elements provides notable structural benefits, enhancing ease of use and installation.
The system features four standard stacking and parking track options, ensuring smooth and quiet operation. The individual glass panels slide seamlessly into place on the movable and operable partition tracks, offering both convenience and minimal noise disruption. Ideal for dynamic office spaces, this system combines functionality with sophisticated design.

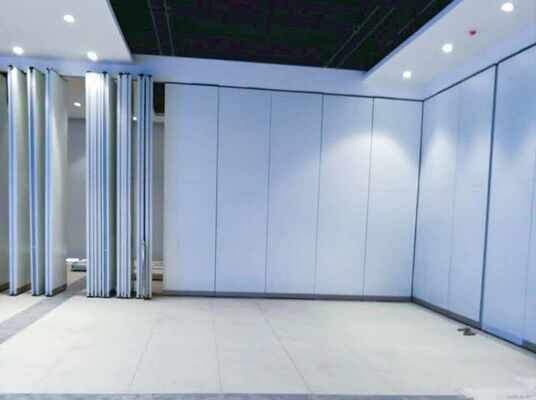

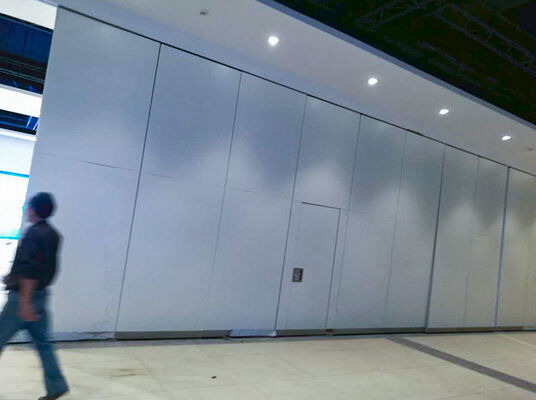

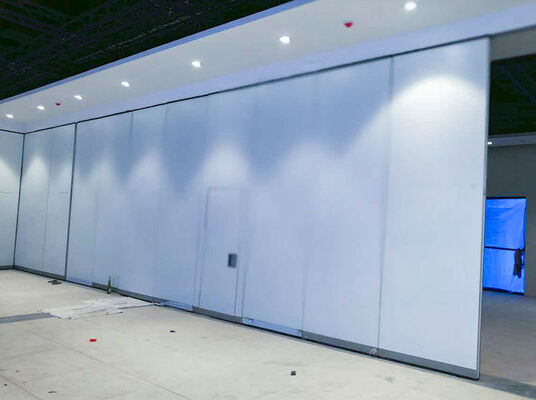

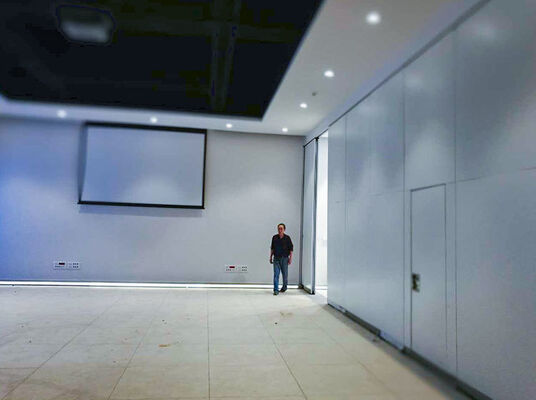

Partitions are top-supported, manually operated panels stacked in designated areas. When closed, the operable wall provides a complete sound retardant barrier without requiring floor tracks.
| Technical Characteristics | Details |
|---|---|
| Wall Thickness | 108mm/90mm |
| Height | Up to 3000mm |
| Grid Width | Up to 1200mm |
| Weight | 70-80kg/sq.m |
| Attachment to Building Structure | Concealed connections to the slab and walls; sealing along the perimeter; deviations ±10mm in height and width |
| Glass Thickness | 10mm/12mm tempered |
| Visibility Options | Transparent, coloured, matte glass; between-the-glass blinds; foil, screen printing, enamel |
| Description | Glazed partition with an in-plane streamlined look. Made from aluminium, double-glazing structurally adhered to the profiles. |
