| ブランド名: | AE |
| モデル番号: | AE100 |
| Moq: | 10平方メートル |
| 価格: | USD90-135Per Square Meter |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給能力: | 月額1000平方メートル |
Our movable partition walls are built for performance and durability. Featuring a robust internal Q235 steel frame and 6061-T6 aluminum profiles, panels are available in 68mm, 89mm, and 105mm thicknesses. The core of our system is an advanced sealing mechanism, with a jack lifting system that provides 800N of sealing force and magnetic seals offering 40N/m attraction. Operation is smooth and reliable thanks to precision CNC-machined 304 stainless steel rollers and a patented wheel design. We provide full submittal drawings and value-engineered alternatives for any project.
SPECIFICATION:
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS | ||||||
| Dimensions in mm* | Design | |||||
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight |
||||||

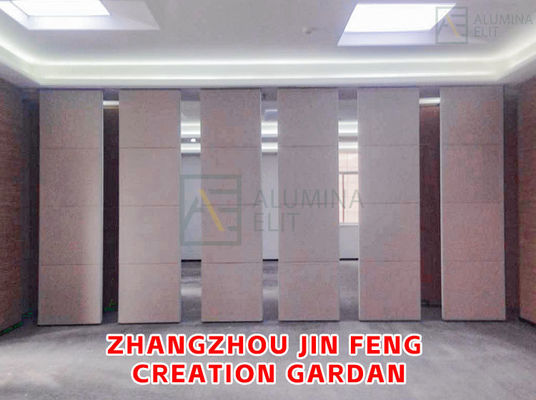

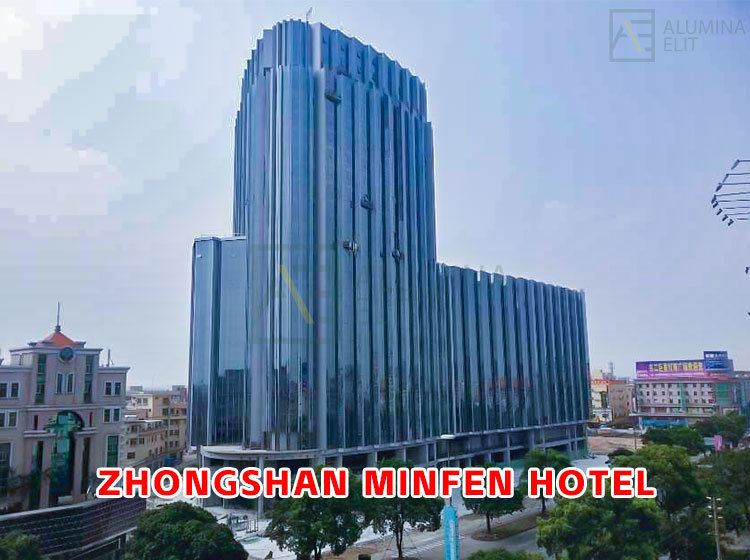

PROJECT:
