Fold Away Acoustic Office Partitions with Q235 Steel Frame and 6061-T6 Profiles for Exhibition Halls

Fold Away Acoustic Office Partitions with Q235 Steel Frame and 6061-T6 Profiles for Exhibition Halls

Fold Away Acoustic Office Partitions with Q235 Steel Frame and 6061-T6 Profiles for Exhibition Halls

ブランド名: AE
モデル番号: AE100
Moq: 10平方メートル
価格: USD90-135Per Square Meter
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給能力: 月額1000平方メートル
詳細情報
製品説明
詳細情報
起源の場所:
広東省、中国
証明:
ISO9001 SGS
製品:
アコースティック オフィス パーティション
コンプライアンス:
宴会ホール,展示ホール
材料:
高圧ラミネートボード
寸法:
パーソナライゼーション (高さ:最大18M,パネルあたり幅:最大1.2M)
デザイン:
OEMおよびODM
遮音性:
最大56db
パッケージの詳細:
泡の層と合板ケースまたはスチールパレット付きの硬い段ボール
ハイライト:

Q235 Steel Frame Acoustic Office Partitions

,

6061-T6 Profiles Movable Partition Wall

,

High Pressure Laminate Board Exhibition Partition Walls

製品説明
Fold Away Acoustic Office Partitions - Movable Partition Wall for Exhibition & Room Management
Customizable Room Management with Acoustic Operation Partition Walls System
Our AE100 Series fold-away partition walls feature optional protective edge trim or monolithic vertical edges. Available in various finishes including vinyl, fabric, acoustical fabric, veneer, high pressure laminate, murals, and customer-supplied materials. No floor tracks required.
These partitions allow effortless room reconfiguration to suit any requirement, from small conference rooms to large exhibition halls. Easily adjust space proportions to accommodate varying numbers of users.
Key Advantages
  • Extensive experience with large-scale projects
  • Reliable delivery time management
  • Dedicated design team for product development
  • SGS & ILAC-MRA certified performance
  • German partition technology & global space solutions
  • Enhanced product longevity
  • Responsive quotation service
Roller Options & Features
Dupont POM Rollers
Engineered for superior performance and durability.
304 Stainless Steel Heavy-Duty Rollers
Equipped with safety devices and precision CNC machining for reliable operation.
Patented Wheel Design
Unique surface and shape ensure smooth partition movement.
Panel Options & Features
Thickness Options
Available in 68mm, 89mm, and 105mm for various acoustic and structural requirements.
Finish Variety
Wide selection of acoustical and decorative finishes.
Durable Construction
6061-T6 profiles with internal Q235 steel frame for enhanced durability.
Advanced Sealing Mechanism
Top/bottom jack lifting mechanism (800N force) with magnetic seals (40N/m attraction) for superior performance.
Technical Specifications
Series Element Thickness (mm) Element Width (mm)* Clear Height (mm)* Construction Panel Fixing Vertical Profile Design
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
Technology: Weighted sound reduction value (Rw): 52/56 dB (GB/T19889.3-2005). Positive/frictional locking with convex-concave profile form and 40 N/m magnetic attraction.
Note: *Larger widths available upon request. Final dimensions subject to Design Department confirmation.

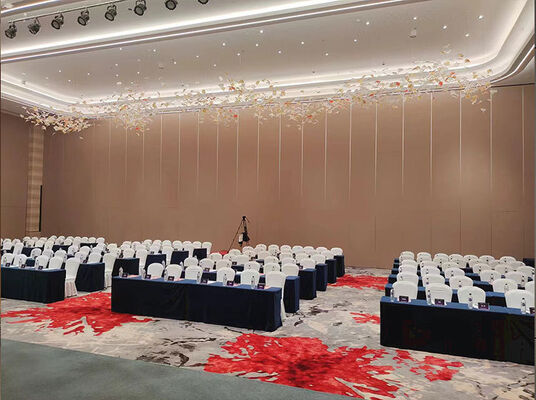

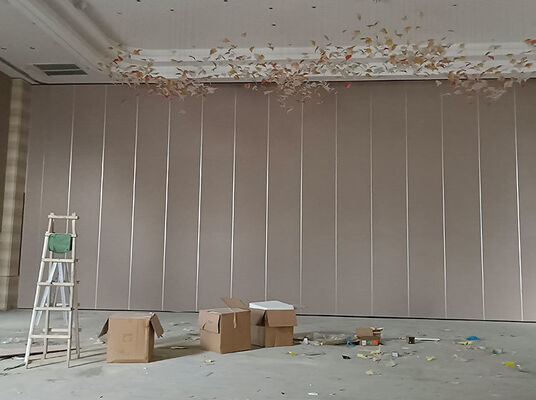

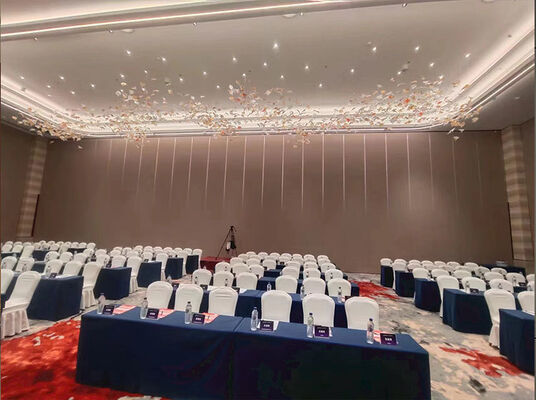

Project Gallery
Fold Away Acoustic Office Partitions with Q235 Steel Frame and 6061-T6 Profiles for Exhibition Halls 0 Fold Away Acoustic Office Partitions with Q235 Steel Frame and 6061-T6 Profiles for Exhibition Halls 1
About Our Company
Fold Away Acoustic Office Partitions with Q235 Steel Frame and 6061-T6 Profiles for Exhibition Halls 2 Fold Away Acoustic Office Partitions with Q235 Steel Frame and 6061-T6 Profiles for Exhibition Halls 3 Fold Away Acoustic Office Partitions with Q235 Steel Frame and 6061-T6 Profiles for Exhibition Halls 4
