| ブランド名: | AE |
| モデル番号: | AE100 |
| Moq: | 10平方メートル |
| 価格: | USD90-135Per Square Meter |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給能力: | 月額1000平方メートル |

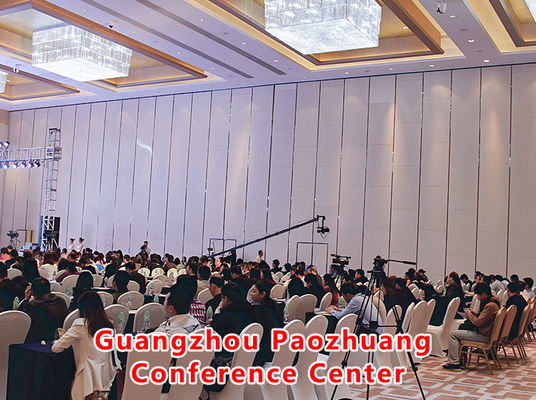

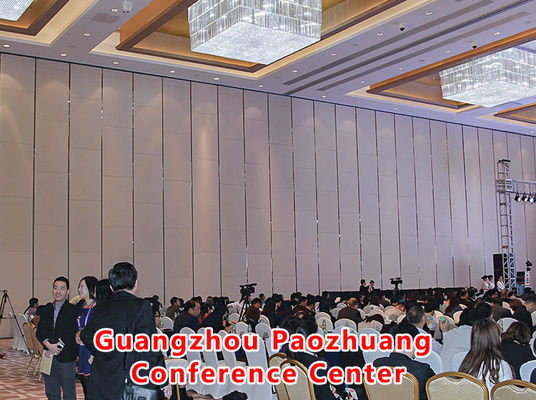

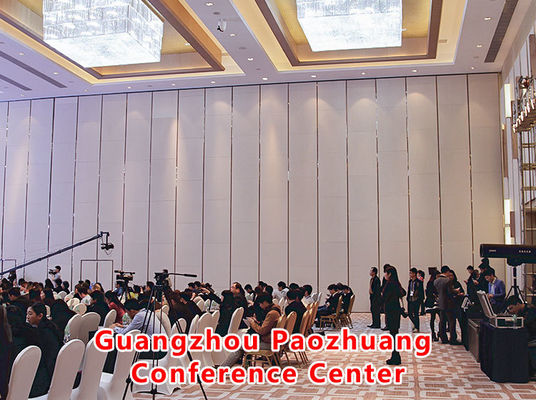

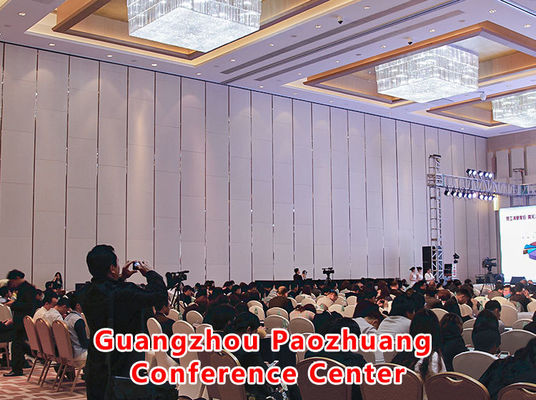

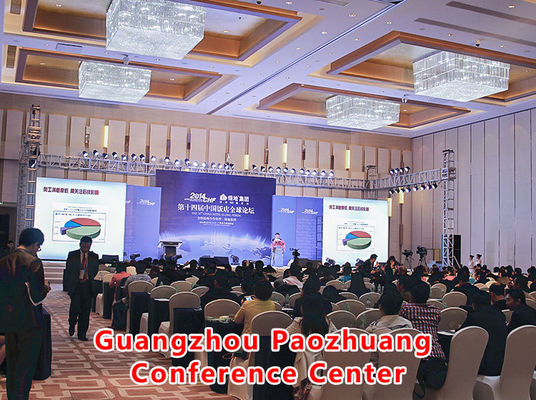

Struggling with inflexible layouts and noise bleed in your venue? Our acoustic movable partition walls provide the definitive solution. We create versatile, sound-insulated zones perfect for multi-function halls and hotels. Our manually operated system is designed for rapid adaptation, allowing you to host multiple events simultaneously in complete privacy. With our extensive project experience and ability to provide cost-effective alternatives, we solve your space and budget challenges without compromising on quality or performance.
| Series | Element thickness (mm) | Element width* (min./max. mm) | Clear height* (min./max. mm) | Framed construction | Panel fixing | Element interconnection/design of the vertical profiles |
|---|---|---|---|---|---|---|
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
